IVM-C3 (Confocal v. 3)

The New All-in-One Intravital Imaging Platform

Home / Products / IVIM / IVM-C3

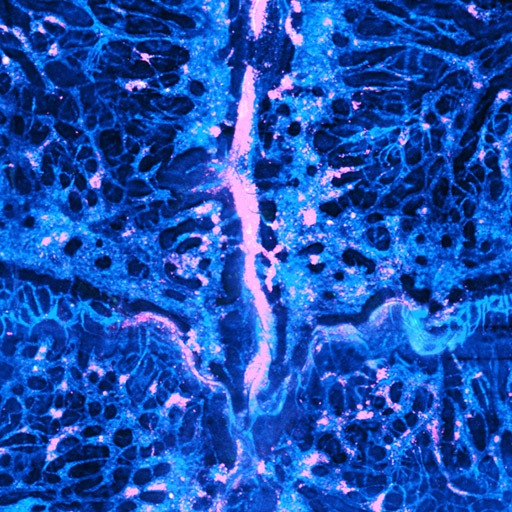

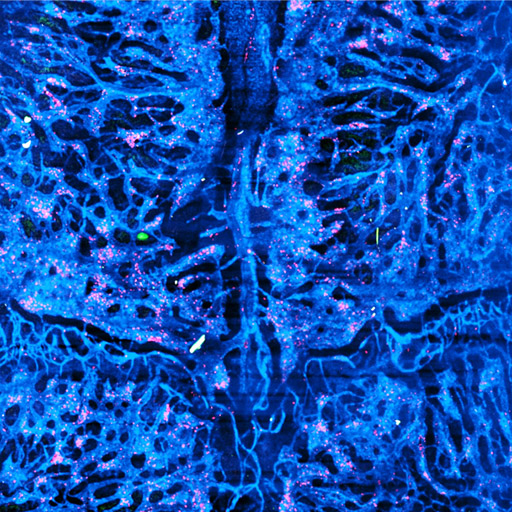

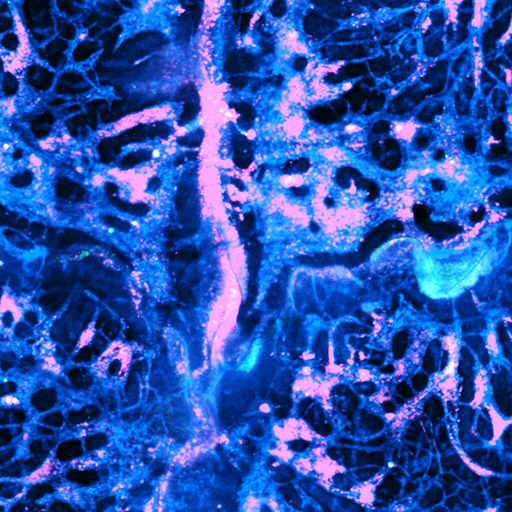

Gallery

Overview

Tractable, Fast and Gentle

IVM-C3 stands as a remarkably integrated Intravital Microscopy solution designed for in vivo imaging. It boasts significantly heightened detection efficiency, optical resolution, and image contrast compared to conventional fluorescence microscopy methods. With a 4-wavelength laser and four high-sensitivity confocal detectors, IVM-C3 facilitates multi-dimensional perspectives of living cells and tissues in both 3D and 4D, supporting up to four different colors. This system proves optimal for concurrently observing diverse dynamic multi-cellular behaviors in small live animal models.

Key Features

■ Simultaneous Multi-Color Imaging (4 channels, 4 different colors)

■ Fully Integrated In Vivo Maintenance Unit / Animal Stage (e.g., Monitoring & Homeostatic Regulation of Animal Vitality)

■ Ultra High-Speed Imaging (max. 50 fps - 512 x 512 pixels)

■ 4D Animal Motion Compensation (XYZ & Time)

Specifications

Laser	Confocal Laser Unit	• 405 nm (20mW), 488 nm (20mW), 561 nm (20mW), 640 nm (20mW)
Fluorescence Detector	Confocal Detector	• Wavelength: 450 - 750 nm (DAPI, CFP, GFP, YFP, RFP, Cy5, Cy5.5, etc.) • 4 Ultra-broadband high SNR PMTs (UV to Near IR, Ultra High Sensitivity, Low Dark Current) • Single master pinhole
Fluorescence Detector	Emission Filter	• Individual filter can be mounted on each of four detectors
Scan Head	Scanner	• Polygonal mirror (Fast axis scanning, Max. 66 kHz) • Galvano scanner (Slow axis scanning, Max. 200 ㎲/step)
Imaging Head	Objectives	• Max. 5 objectives are mountable on IVM Engine Software controlled motorized turret (1X - 100X) • Compatible for commercial objectives
Image	FOV	• 100 x 100 ㎛² - 10 x 10 mm²
	Pixel Resolution	• Max. 2,048 x 2,048 pixels
	Imaging Speed	• Standard: 30 fps @ 512 x 512 pixels • (Optional) High Speed: 50 fps @ 512 x 512 pixels
Animal / Sample Stage	Movable Stage	• Travel Range: 50,000 x 50,000 x 75,000 ㎛ (XYZ) • Micromanipulation (Max. 0.2 ㎛ resolution) • 3-axis independent control with Jog Dial & IVM Engine software
	Specimen Holder	• Flexible-design universal in vivo / ex vivo / in vitro specimen holders can be mounted. • (Optional) Homeothermic warming system, Holders for window chamber
	Monitoring Camera	• Real-time live animal / sample monitoring
	LED Light	• Installed inside the machine to assist in the observation of live animals or samples
Animal Motion Compensation (Tissue stabilization)	4D In vivo Imaging Motion Compensation	• XY motion compensation: Averaged image acquisition with motion artifact compensation • Z motion compensation: Image-based sample Z position adjustment for long-term intravital microscopic imaging & sample tracking (Feedback-loop automatic stage control) • T motion compensation: Image-based image XY position adjustment for long-term intravital microscopic imaging & sample tracking (Feedback-loop automatic stage control) • Combination of above three compensations for 4D in vivo motion compensation • Controllable by IVM Engine software
Accessories Add-on	Live Animal Maintenance Unit	• Body Temp. Monitoring & Feedback Heater Control, including tablet PC. • 4CH Rectal Probe, Body Plate Heater, Thermometer Sensor & Cover Glass Heater
	In vivo Imaging Chamber Sets	• Dorsal Skinfold Chamber • Lung Imaging Chamber • Cranial Imaging Window • Abdominal Imaging Window • Pancreas Imaging Window • Mammary Imaging Window • Heart Imaging Chamber • Uterus Imaging Chamber
	Inhalation Anesthesia System	• Whole Rodent Animal Inhalation Anesthesia System • Anesthesia Mask and Connections for Longitudinal Imaging
	Antibodies / Dyes	• Fluorescent labeling agents, vascular dyes and conjugated antibodies
Engine & Studio Software	Image Display	• Independent 4 single channel display (RGBA channel) • Overlay channel display (Selection among RGBA channel)
Engine & Studio Software	In vivo Imaging Modes	• Mosaic imaging (XY), Z-stack imaging (Z), Time-lapse imaging (T) • Time-lapse imaging at Multi-position (T - M) • Time-lapse & Z-stack imaging (TZ) • Time-lapse & Z-stack imaging at Multi-position (TZ - M)
