The ORCA®-Fire intelligently integrates all the essential elements of a high performance, back-thinned, scientific CMOS (sCMOS) camera. The camera’s excellence is rooted in Hamamatsu’s dedication to low noise and high quantum efficiency sCMOS technology. With the ORCA-Fire, high sensitivity is realized while also achieving excellent resolution and blazing fast speeds. The ORCA-Fire shines when the science demands high throughput but the sample can only deliver a few photons.
Will the ORCA-Fire spark your next discovery?
ORCA is a registered trademark of Hamamatsu Photonics K.K. (China, EU, France, Germany, Japan, UK, USA).
Specifications

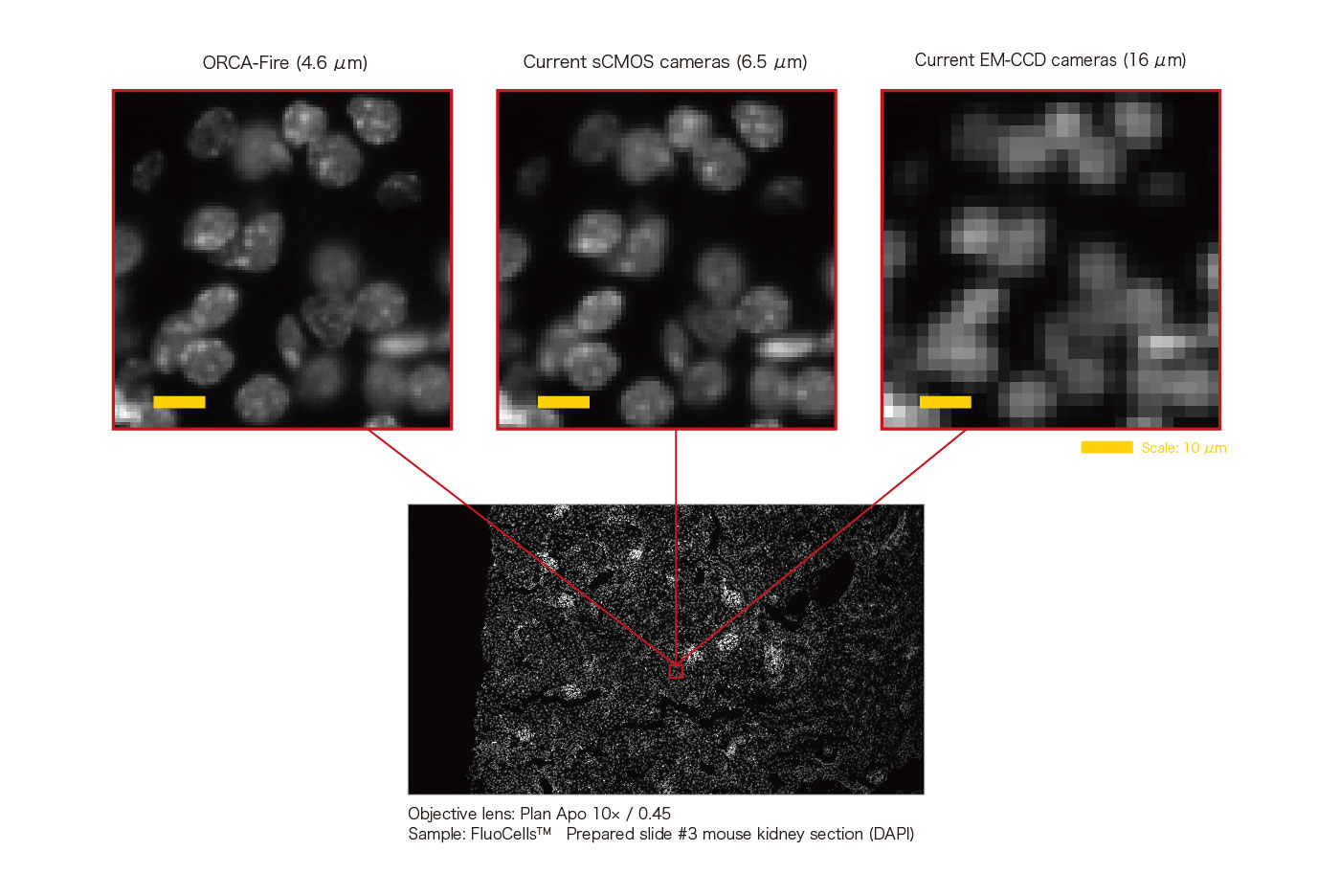

| Product number | C16240-20UP |
|---|---|
| Imaging device | Scientific CMOS image sensor |
| Effective number of pixels | 4432 (H)×2368 (V) |
| Pixel size | 4.6 μm×4.6 μm |
| Effective area | 20.387 mm×10.892 mm |
| Full well capacity | 20 000 electrons (Typ.) |
| Readout speed*1 | Full resolution, CoaXPress : 115 frames/s Full resolution, USB 3.1 : 15.7 frames/s Vertical 4 line, CoaXPress : 19 500 frames/s Vertical 4 line, USB 3.1 : 3690 frames/s |

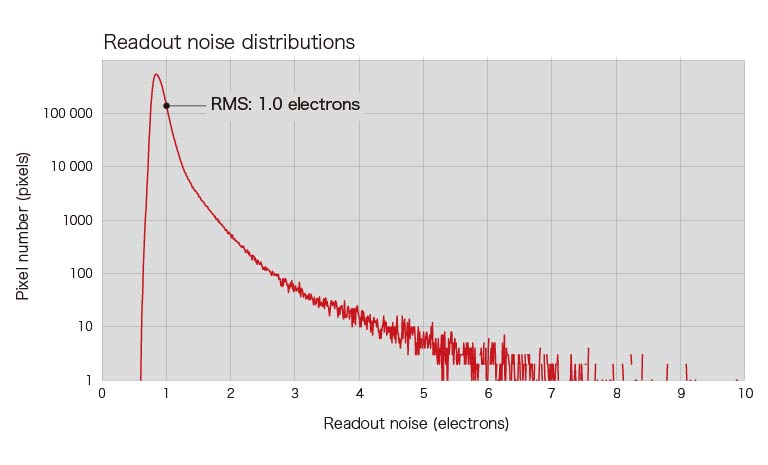

| Readout noise | 1.0 electrons (rms), 0.9 electrons (median) |

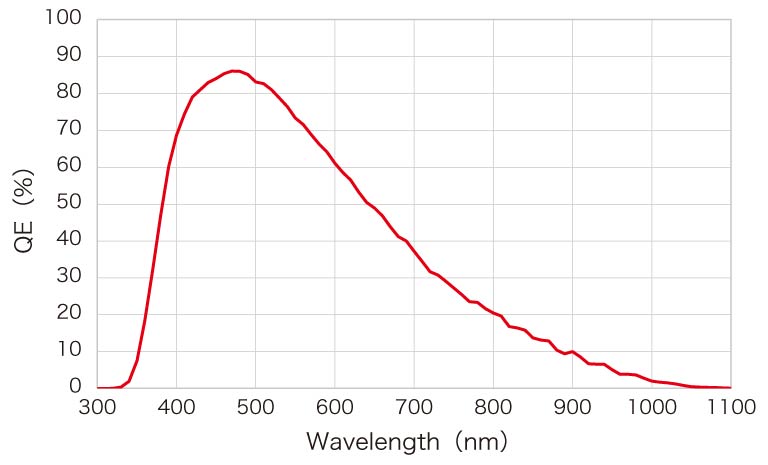

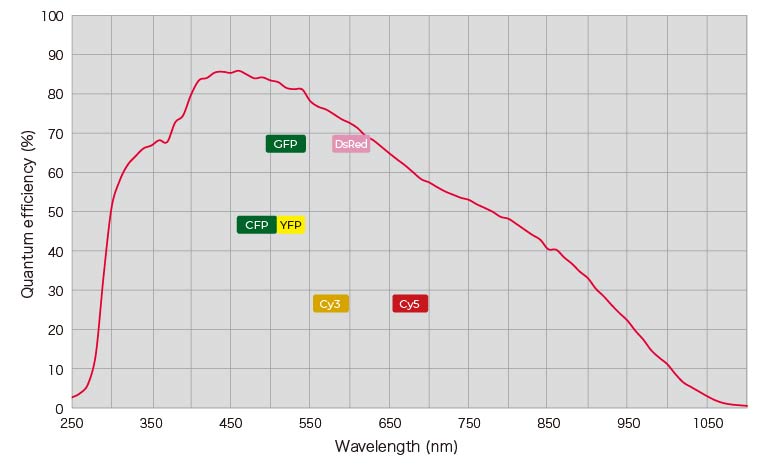

| Quantum efficiency | 86 % (peak QE) (Typ.) |
| Exposure time | 7.309 μs to 10 s (7.309 μs step) |
| Cooling method | Peltier cooling |
| Cooling temperature | Forced-air cooled (Ambient temperature: +25 °C) + 20 °C |
| Dark current | 0.6 electrons/pixel/s (Typ.) |
| Dynamic range*2 | 20 000 : 1 (rms) , 22 000 : 1 (median) |
| Sensor mode | Area readout , Lightsheet readout |
| External trigger function | Area readout mode : Edge trigger , Global reset edge trigger , Level trigger , Global reset level trigger , Sync readout trigger , Start trigger Lightsheet readout mode : Edge trigger , Start trigger |
| External trigger signal | External input (SMA) |
| External trigger level | TTL/3.3 V LVCMOS level |
| External trigger delay function | 0 μs to 10 s (1 μs step) |
| External output signal | Global exposure timing output , Any-row exposure timing output ,Trigger ready output , Programmable timing output High output , Low output |
| External output level | 3.3 V LVCMOS level |
| Interface | CoaXPress (Quad CXP-6) / USB 3.1 Gen 1 |
| A/D converter | 16 bit , 8 bit |
| Lens mount | C-mount |
| Power supply | AC 100 V to AC 240 V, 50 Hz/60 Hz, 2.5 A |
| Power consumption | 100 VA |
| Ambient operating temperature | 0 °C to +40 °C |
| Ambient storage temperature | -10 ℃ to +50 ℃ |
| Ambient operating humidity | 30 % to 80 % or less (With no condensation) |
| Ambient storage humidity | 90 % or less (With no condensation) |
